Surgical Laser Platforms

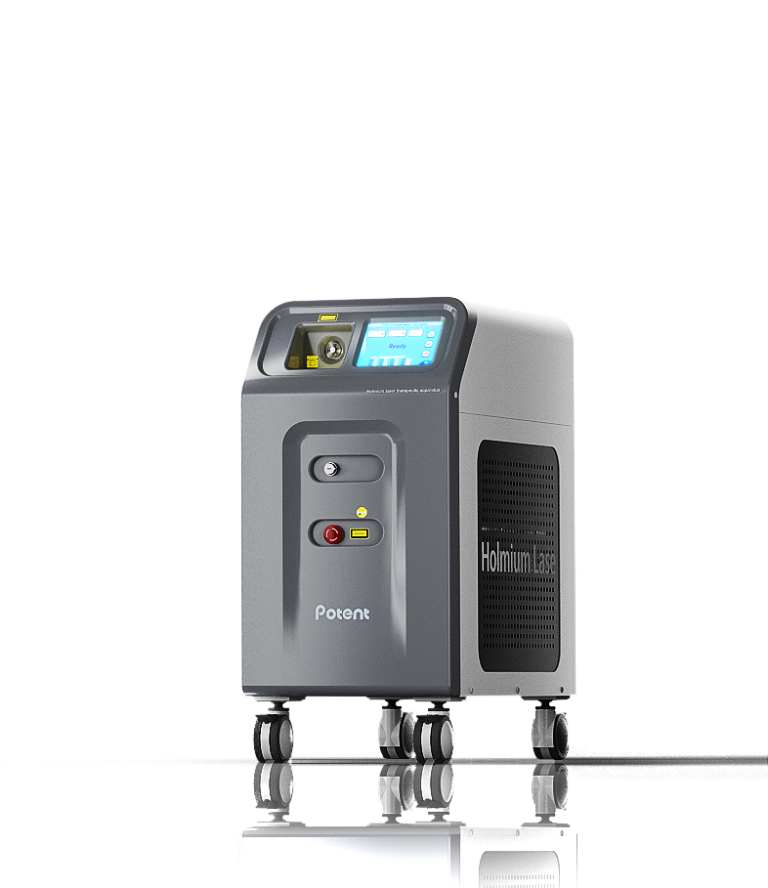

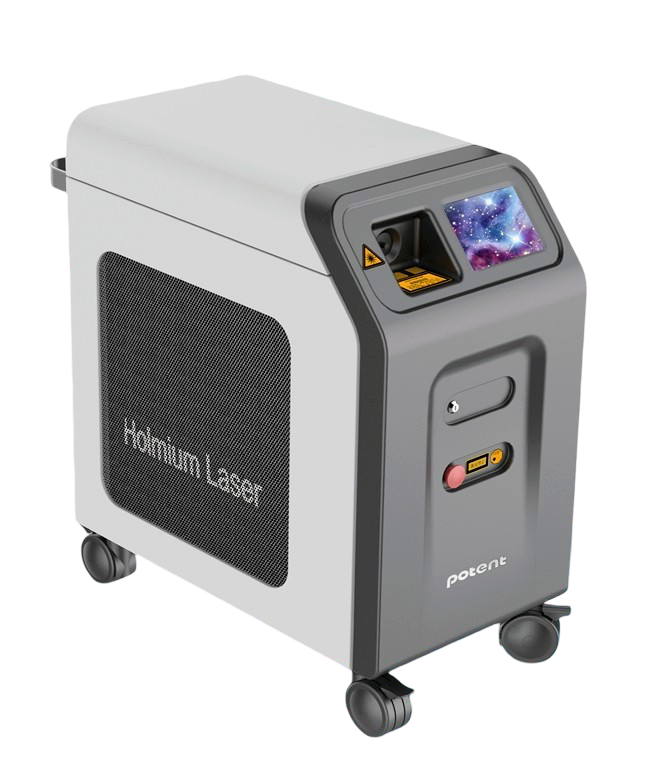

Holmium Laser HZ Series
40W & 90W Stand Alone
A high-performance surgical Holmium:YAG laser platform engineered for advanced urology and minimally invasive surgical applications, delivering stable energy output and efficient clinical workflow.
- 40W & 90W Stand Alone Maximum Output Power
- Frequency: 5–30 Hz (40W) & 5–60 Hz (90W)
- Pulse Energy: 0.1–5.0 J (40W & 90W)
Key Features & Capabilities
Effective In Both Lithotripsy And Soft Tissue Surgery
Potent HZ series operates as a universal laser lithotripsy system in urology. Featuring a 2.1µm wavelength and adjustable pulse width modes, it provides surgeons with the capability to perform both lithotripsy and soft tissue surgery with maximum efficiency and safety.
HoLEP (Holmium Laser Enucleation of the Prostate)
Thanks to advanced performance and adjustable pulse widths, the HZ series provides a highly safe, controlled, and efficient treatment for Benign Prostatic Hyperplasia (BPH). The system fully supports HoLEP procedures for effective prostate enucleation.
Streamline Settings
Equipped with 40W & 90W Stand Alone power options and a streamlined management interface, the system provides urologists with a wide combination of preset parameters. This makes it effortless to customize settings for stone treatments, tissue excision, and ablation across different soft tissue ranges.

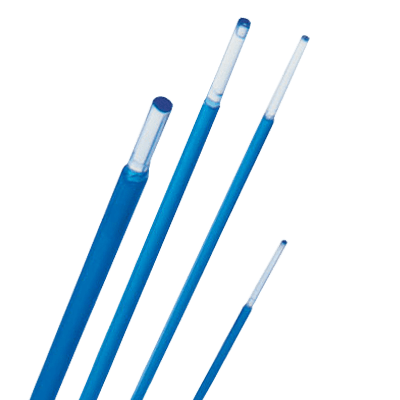

Multi Reusable Fibers
Support for a variety of reusable laser fibers with core diameters ranging from 200 µm to 1000 µm. The system achieves maximum fiber flexibility and high power transmission efficiency, delivering substantial cost savings compared to systems restricted to single-use disposable fibers.
- 200µm Fiber
- 276µm Fiber
- 365µm Fiber
- 550µm Fiber
- 800µm Fiber
- 1000µm Fiber
Advanced Surgical Technology
The HZ Series integrates advanced engineering and intelligent energy control technologies to ensure surgical safety, reliability, and precision.
Dual-Insurance Laser Design
Featuring a dual-cavity laser design that enables stable operation and continuous, uninterrupted treatment. The backup cavity ensures a fail-safe operation during procedures.
Unique Sealing Techniques
Built-in sealed optical cavity structure provides robust protection to guarantee long-term output stability and reliability.
Premium Imported Core Components
Imported USA–Germany components deliver high power and reliability for consistent clinical performance.
Intelligent Internal Cooling System
An eco-friendly, self-contained internal cooling design provides efficient heat dissipation. This allows stable, long-duration surgical operations while maintaining low ambient noise in the operating theatre.
Technical Specifications
| Parameter | HZ-40W Model | HZ-90W Model |
|---|---|---|
| Output Power (Max.) | 40 WATTS | 90 WATTS |
| Pulse Frequency | 5 – 30 Hz | 5 – 60 Hz |
| Pulse Energy | 0.1 – 5.0 J | 0.1 – 5.0 J |
| Dimensions (w x d x h) | 89cm * 45cm * 90cm | 89cm * 45cm * 105cm |
| Weight | 110kg | 160kg |
| Laser Type | Holmium laser (Ho:YAG) | |
| Wavelength | 2.1μm | |
| Pulse Duration | 50~2000us | |
| Aiming Beam | Green 532nm, <1mW, can be fine-tuned | |
| Cooling System | Internal cooling system | |
| Fibers | Reusable 200um, 276um, 365μm, 550μm, 800μm, 1000μm | |
| Main Supply | AC 220V-240V/50Hz-60Hz, single phase | |
