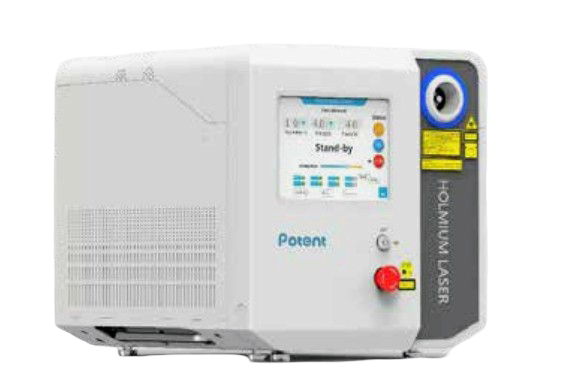

Portable Urology Laser Systems
Portable XP Series
Holmium Laser
Compact high-performance Holmium:YAG laser system engineered for advanced stone management, lithotripsy, dusting, fragmentation, and minimally invasive urology procedures.
- 40 Watts Maximum Output Power
- 30 Hz Maximum Pulse Frequency
- 0.1 – 6.0 J Pulse Energy Range
- Desktop-Sized Portable Architecture
Key Features & Capabilities

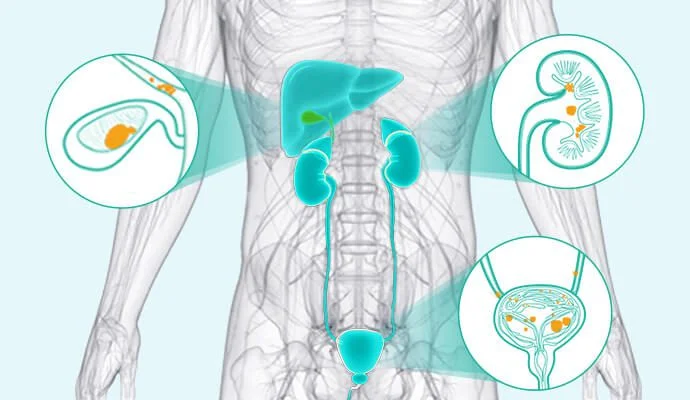

Born For Ultimate Flexible Endoscope Stones Management
The XP Series is engineered to deliver shorter operation times and high stone clearance efficiency. Its portable desktop-sized architecture combines high surgical efficiency with flexible workflow integration.
- Desktop-sized portability
- High pulse energy
- High frequency operation
- Reduced stone retropulsion
One Solution For All Stones Management
The Portable XP Series supports multiple stone treatment techniques with intelligent operating modes optimized for different procedural requirements.
Dusting Mode
Designed for smooth ablation and better stone clearance efficiency.
Fragmentation Mode
Supports hard-stone fragmentation and robust stone management.
Popcorn Mode
Supported mode designed for continuous pulse application in stone treatment.

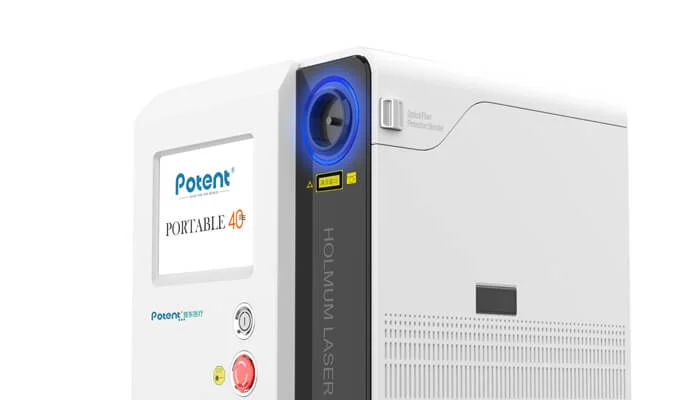

Compact Yet Powerful Design
The XP Series combines portability and high surgical performance within a compact desktop-sized platform. With an intuitive 10-inch touchscreen, surgeons can quickly select proper treatment parameters for different stone conditions.
- 10-inch Touchscreen
- Telescopic Handle
- Remote OTA Upgrades
- Removable Blast Shield
Advanced Pulse Width Technology
The system features adjustable pulse width modes to optimize fragmentation and dusting performance during stone treatment procedures.
Short Pulse Width
Provides concentrated pulse energy, better hard stone fragmentation, and a powerful breaking effect.
Long Pulse Width
Enables smooth stone ablation, enhanced dusting performance, sustained pulse delivery, and reduced stone retropulsion.
Engineering Excellence
The Portable XP Series integrates advanced safety and control technologies to deliver stable energy and flexible workflow integration.
Telescopic Handle
Built-in portable telescopic handle enables easy movement and integration into different surgical environments without compromising treatment performance.
Remote OTA Upgrades
Allows system updates and feature enhancements to be deployed remotely via Over-The-Air technology, ensuring the software stays current.
Removable Blast Shield
Features an easily removable blast shield to safeguard optical components and streamline fiber interface maintenance.
Temperature Control System
Equipped with an intelligent internal cooling system designed for optimal thermal management.
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Wavelength | 2.1 μm (Holmium:YAG) |
| Output Power (Max.) | 40 Watts |
| Pulse Frequency | Up to 30 Hz |
| Pulse Energy | 0.1 – 6.0 J |
| Pulse Duration | 50 – 2000 μs |
| Pulse Modes | Long, Medium, Short |
| Aiming Beam | Green Aiming Beam, 532 nm |
| Cooling System | Internal Cooling System |
| Fiber Compatibility | 200μm, 276μm, 365μm, 550μm, 800μm, 1000μm |
| Main Supply | AC 110V +10% or 220V +22V / 50Hz ±1Hz |
Clinical Versatility & Partnerships
Urology Applications
- Advanced Stone Management
- Flexible Endoscopy Integration
- Minimally Invasive Surgery
FutureMed Support
- Trusted Urology Partner
- Pan-India Installation Network
- Dedicated Technical Support
- Surgical Training & Demos
Global Standards
- Trusted Manufacturer Quality
- Global Manufacturing Excellence
- International Industry Certifications
