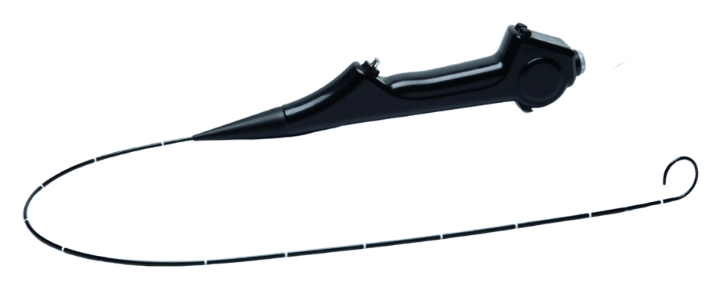

WeSeeMed Reusable Ureteroscope

RF 14A
Flexible Video Ureteroscope

A reusable, durable flexible video ureteroscope with 275° bidirectional deflection and 3.6 Fr working channel.

7.5 Fr — "No Stone Left"
U 275° / D 275° Angulation Range
3.6 Fr Working Channel · 680 mm Working Length
Actual Reusable — Cidex, ETO & Sterrad Compatible

Key Features & Capabilities

Flexible Video Ureteroscope

The RF 14A is a flexible video ureteroscope featuring a 3.6 Fr working channel and up to 275° angulation to accommodate diverse urological interventions.

Working Channel

3.6 Fr internal diameter supports various endoscopic instruments.

Reusable Construction

Actual reusable, durable design suitable for multiple procedures.

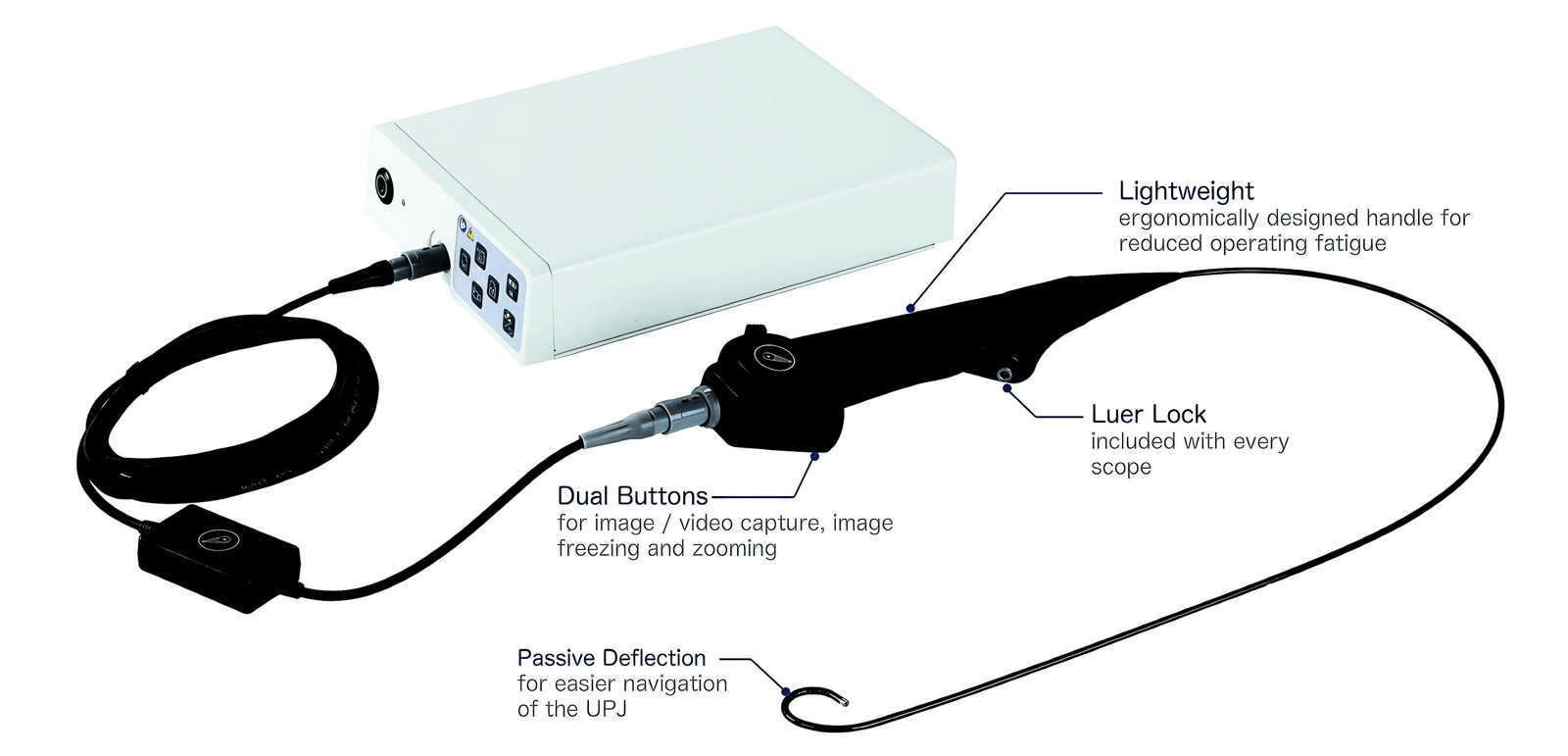

RF 14A flexible insertion tube with 275° angulation

U 275° / D 275° Angulation

With up to 275° of deflection in both directions, the RF 14A flexible ureteroscope allows for comprehensive inspection inside the urinary tract, following a "no stone left" philosophy.

110° field of view
0° direction of view
3 – 50 mm depth of field
680 mm working length

Reusable. Durable. Flexible Workflow.

Truly Reusable

Actual reusable, durable construction for reliable performance.

Flexible Reprocessing

Can use Cidex fully dip, ETO, and Sterrad sterilization processing.

Processor-Free Option

Can connect to laptop or tablet even without processor.

7.5 Fr Profile Option

Available with actual 7.5 Fr from tip to handle. Additional insertion tube ODs of 8.4 Fr and 9.2 Fr are also offered.

Technical Specifications

Parameter	Specification
Field of View	110°
Depth of Field	3 – 50 mm
Direction of View	0°
Insertion Tube Outer Diameter	7.5 Fr / 8.4 Fr / 9.2 Fr
Angulation Range	Up 275° / Down 275°
Working Channel Inside Diameter	3.6 Fr
Working Length	680 mm
Reusability	Reusable, Durable
Reprocessing	Cidex Full-Dip, ETO, Sterrad
Connectivity	Laptop / Tablet (with or without processor)
