Thulium Fiber Laser Platforms
Thulium Fiber Laser
PULSED MASTER 45W & 70W
An advanced surgical laser platform engineered for high-performance Lithotripsy, Soft Tissues, and BPH Surgery, providing adjustable pulse duration and flexible silica fibers.
- Repetition Rate: 1–1500 Hz (PULSED MASTER 45W) / 1–2500 Hz (PULSED MASTER 70W)
- Pulse Energy: 0.02–5 J (PULSED MASTER 45W) / 0.02–6 J (PULSED MASTER 70W)
- 1.94 μm Wavelength
- Air Cooling System
Lower Noise
Reduced operating noise for a better surgical environment.
Standard Plug
Compatible with standard wall sockets.
Reduced Cost
Cost-effective performance and operation.
High Performance
Stable delivery and advanced treatment capabilities.
Advanced Laser Capabilities

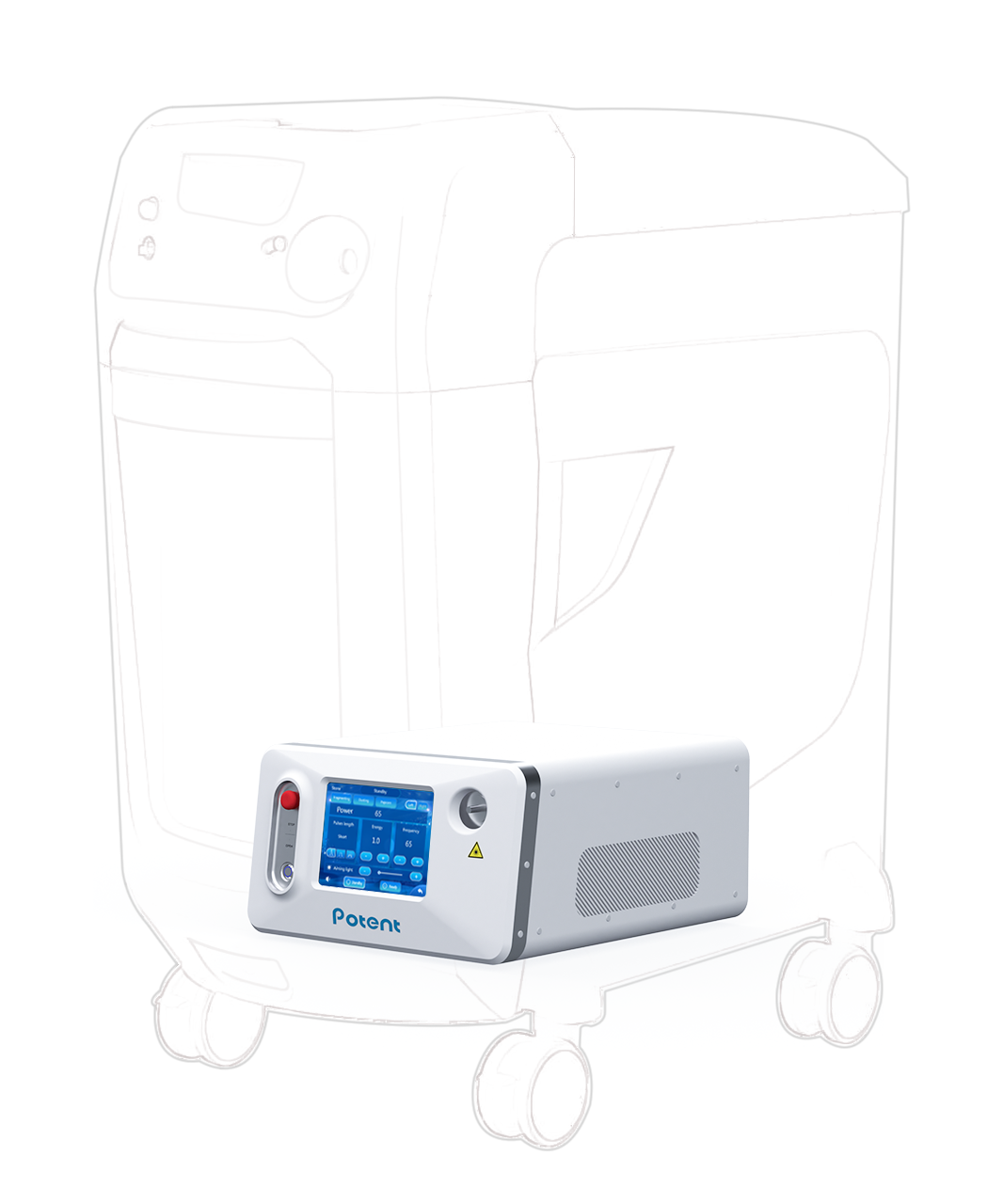

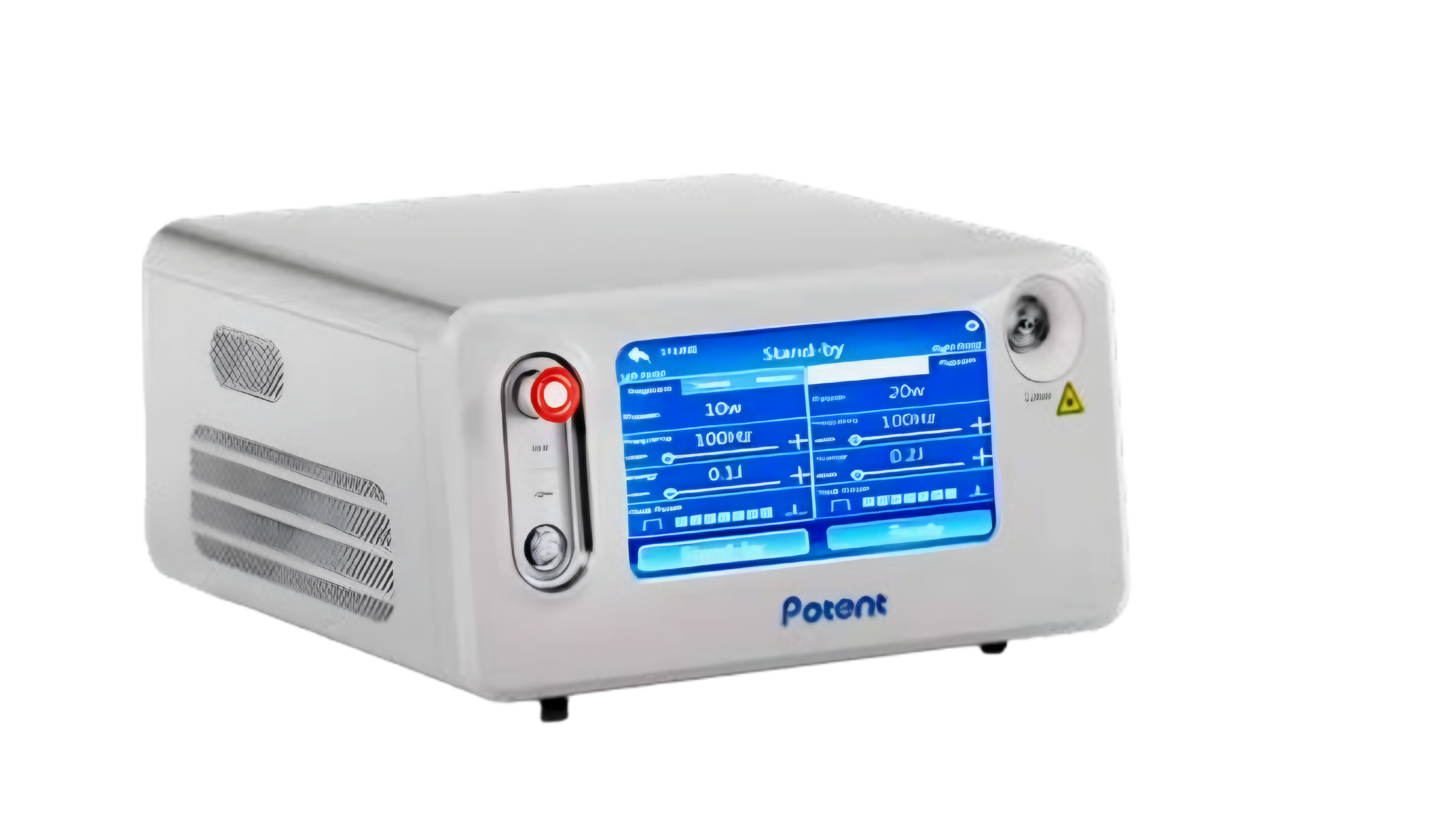

PULSED MASTER 45W & 70W
The PULSED MASTER system combines high-frequency laser performance, a wide range of flexible silica fibers, and an advanced 1.94 μm wavelength to support urological procedures. The system features a 35 kg console powered by standard electrical requirements.
- Up to 1500 Hz (PULSED MASTER 45W) / 2500 Hz (PULSED MASTER 70W)
- RFID Fiber Recognition
- Lower Noise
- Standard Plug

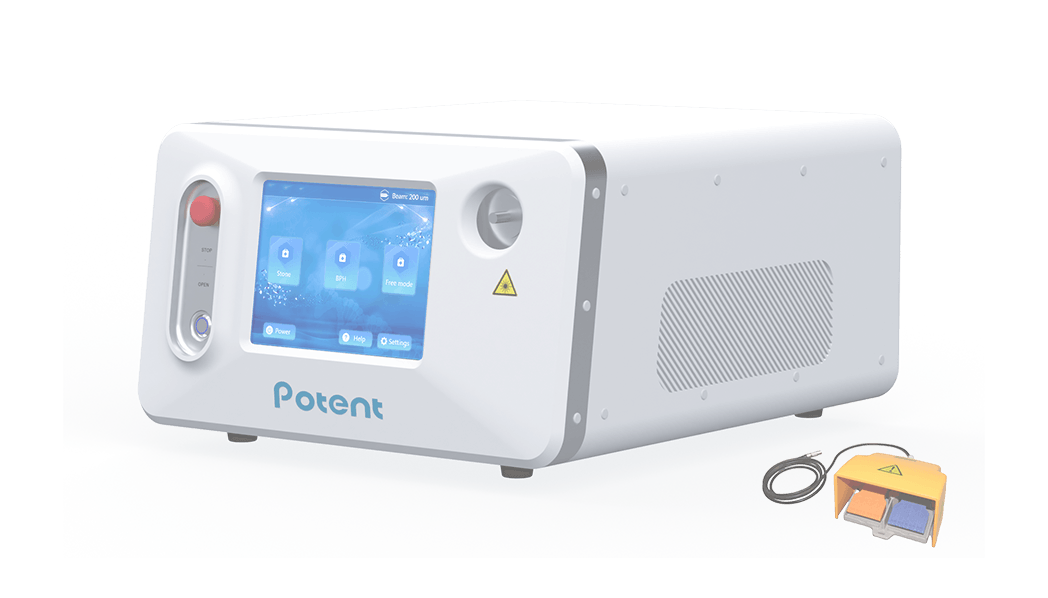

Air Cooling System
The PULSED MASTER features a reliable air cooling system designed to manage operational temperature effectively.
- Efficient air cooling architecture
- Maintains system performance
High-Performance Lithotripsy
The Thulium Fiber Laser supports robust lithotripsy procedures, providing a wide range of settings for different stone treatment requirements.
Dusting and Fragmentation
Versatile application suitable for both stone dusting and fragmentation techniques.

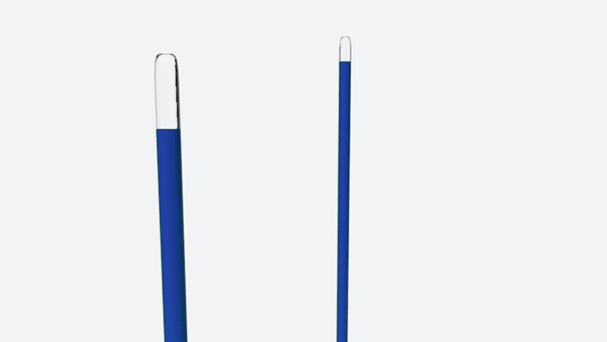

Flexible Silica Fibers
Supports a wide range of flexible silica fibers to accommodate different scopes.
High Repetition Rate
Operates at frequencies up to 1500 Hz (PULSED MASTER 45W) and 2500 Hz (PULSED MASTER 70W).
Adjustable Settings
Features adjustable pulse duration for optimal control.
Procedural Versatility
The future of urology has arrived with our thulium laser system, which offers unmatched precision and effectiveness for treating stones, BPH, and soft tissue.
Lithotripsy
PULSED MASTER 45W and PULSED MASTER 70W systems provide high performance for stone management, fully supporting both dusting and fragmentation workflows.
BPH Surgery
The 1.94 μm Thulium Fiber Laser is well-suited for BPH surgery, delivering consistent energy for prostate procedures.
Soft Tissues
Provides precise energy delivery designed for soft tissue treatment and management across various urological procedures.
Discover PULSED MASTER's Advanced Modes
The device is equipped with official operational modes that allow for flexibility and diversity in surgical techniques.
Superpulsed Mode
Delivers repeated high-energy pulses designed for effective lithotripsy, including both dusting and fragmentation tasks.
Continuous Mode
Provides a steady, continuous emission of laser energy, typically utilized in soft tissue and BPH surgical interventions.
Technical Specifications
| Parameter | PULSED MASTER 45W | PULSED MASTER 70W |
|---|---|---|
| Average power | Up to 45 WATTS | Up to 70 WATTS |
| Repetition rate | 1 Hz - 1500 Hz | 1 Hz - 2500 Hz |
| Energy per pulse | 0.02 J - 5 J | 0.02 J - 6 J |
| Wavelength | 1.94 μm | |
| Pulse Duration | Adjustable | |
| Laser Type | Thulium Fiber Laser | |
| Beam delivery | Wide range of flexible silica fibers | |
| Aiming beam,green | 532 nm (adjustable <5 mW) - Class 3R | |
| Fiber recognition | RFID System | |
| Activation | Double footswitch | |
| Cooling | Air cooling system | |
| Electrical requirements | 100-240 vac; 50/60 Hz; 1000VA | |
| Weight | 35 kg | 35 kg |
Clinical Versatility & Support
Urology Applications
- Lithotripsy
- BPH Surgery
- Soft Tissues
FutureMed Support
- Pan-India Presence
- Installation Network
- Strong Service & Clinical Support
- Urology-Focused Portfolio
Global Standards
- Standard FDA Compliance
- CE Recognized
- ISO Certified
- Global Manufacturing Partner
