WeSeeMed Flexible Endoscopy

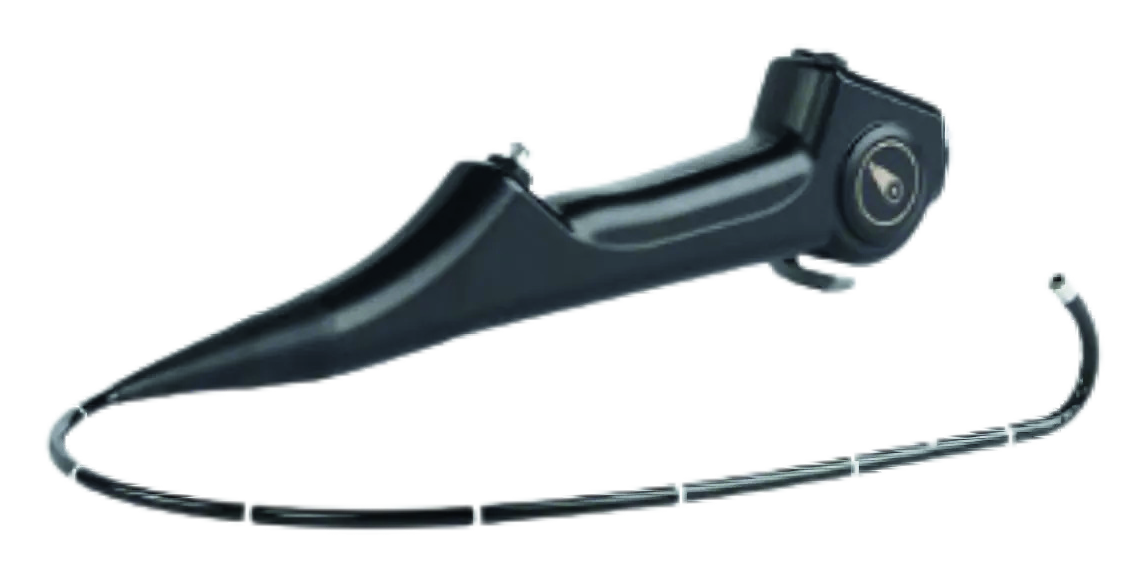

RF13A
Cystoscope
A flexible video cystoscope delivering high-definition images that clearly reveal pathological details — compatible with a wide range of surgical procedures, including electrosurgical treatments.
- HD Image Definition
- U210° / D130° Bending Range
- 4.9 mm & 5.5 mm Outer Diameter Options
- Supports Electrosurgical Treatments
Key Features & Capabilities
Beyond Diagnosis — Treat Through The Scope

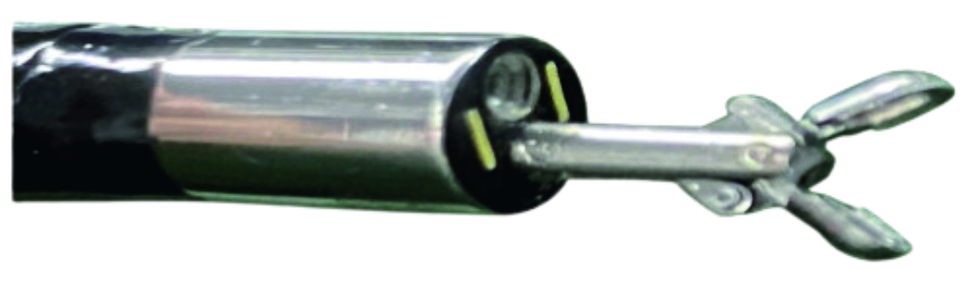

The RF13A is compatible with a wide range of surgical procedures. Its working channel accepts instruments for interventions, and electrosurgical treatments such as hemostasis and hot biopsies can also be performed.
- Hemostasis
- Hot Biopsies
- Instrument Channel
- Wide Procedure Range
High-Definition Imaging
High-definition images clearly observe pathological details. Observation of the lesion is placed in front of the lens due to upward 210° and downward 130° bending.
Two Size Configurations
Available in 4.9 mm OD with a 2.2 mm channel, or 5.5 mm OD with a 2.6 mm channel.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RF13A |
| Outer Diameter | 4.9 mm / 5.5 mm |
| Inside (Channel) Diameter | 2.2 mm / 2.6 mm |
| Bending Range | Up 210° / Down 130° |
| Working Length | 380 mm ±10% |
| View Angle | 90° |
| Image Definition | HD |
| Electrosurgical Capability | Hemostasis, Hot Biopsies |
Device Ecosystem
Clinical Utility
- Endoscopic Procedures
- Diagnostic Inspection
- Surgical Interventions
